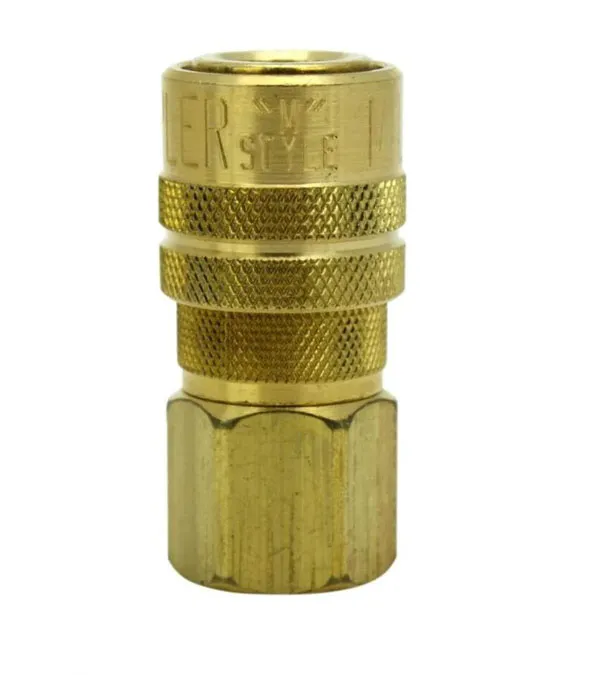

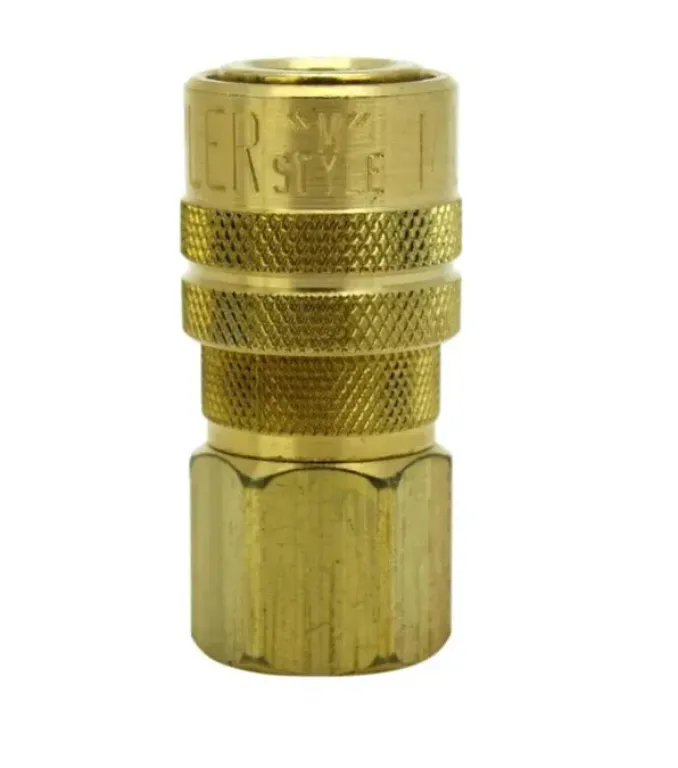

MILTON FEMALE COUPLER BODY 3/8

  • Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
  • 1/4” basic size.
  • “M” style coupler bodies are brass with brass sleeves.
  • “M” style plugs are case hardened steel, plated to resist rust.
  • Maximum inlet pressure: 300 PSI.
  • Maximum temperature: 250° F.
  • Air flow: 40 SCFM.
  • Seals: Buna-N.
  • 1/4” & 3/8” NPT male and female couplers and plugs.
    Part #: XM718
    Availability:
    In Stock
    Price: $21.4125
    i h h
    The Milton Female Coupler Body 3/8 is designed to provide seamless connections in pneumatic applications. Featuring M-style compatibility, this coupler adheres to military specification MIL-C-4109, ensuring interchangeability with other manufacturers. The robust brass body and sleeves guarantee durability and resistance to wear, making it ideal for industrial environments. Its 3/8" thread size and female gender make it suitable for a variety of air hose configurations, enhancing efficiency in your operations.
    Products specifications
    Gender Female
    Style M-Style
    Thread Size 3/8"
