Ram Products | Air Hose Fittings

AIR COUPLER M-STYLE 1/4" HOSE BARB, W/DRAG GUARD

XM1717-4

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$193.298
$19.3298

+ -

AIR COUPLER M-STYLE 3/8" HOSE BARB, W/DRAG GUARD

XM1717-6

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$19.3298

+ -

MILTON FEMALE BODY COUPLER 1/4" FNPT

XM1803

Tru-flate/Parker interchange series.
3/8” basic size.
“P” style coupler bodies are heavy duty steel.
“P” style plugs are case hardened steel, plated to resist rust.
Push type – body engages automatically.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 68 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$36.1875

+ -

MILTON FEMALE COUPLER P STYLE 3/8" FNPT

XM1805

3/8” basic size.
“P” style coupler bodies are heavy duty steel.
“P” style plugs are case hardened steel, plated to resist rust.
Push type – body engages automatically.
Maximum inlet pressure: 300 PSI.

$36.7125

+ -

MILTON P STYLE MALE PLUG 1/4 NPT

XM1809

Tru-flate/Parker interchange series.
3/8” basic size.
“P” style coupler bodies are heavy duty steel.
“P” style plugs are case hardened steel, plated to resist rust.
Push type – body engages automatically.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 68 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$42.75
$8.55

+ -

MILTON FEMALE BODY 3/8" G-STYLE

XM1813

Tru-flate/Parker style interchange series.
“G” style coupler bodies are steel, plated to resist rust.
“G” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300PSI.
Maximum temperature: 250° F.
Air flow: 99 SCFM.
Seals: Buna-N.
1/4” NPT male plug and 3/8” & 1/2” NPT male and female plugs and connectors.

$38.6169

+ -

MILTON 1/2" FEM. BODY G STYLE

XM1815

Tru-flate/Parker style interchange series.
“G” style coupler bodies are steel, plated to resist rust.
“G” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300PSI.
Maximum temperature: 250° F.
Air flow: 99 SCFM.
Seals: Buna-N.
1/4” NPT male plug and 3/8” & 1/2” NPT male and female plugs and connectors.

$204.40
$40.88

+ -

MILTON 1/2 MALE PLUG G STYLE

XM1817

Tru-flate/Parker style interchange series.
“G” style coupler bodies are steel, plated to resist rust.
“G” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300PSI.
Maximum temperature: 250° F.
Air flow: 99 SCFM.
Seals: Buna-N.
1/4” NPT male plug and 3/8” & 1/2” NPT male and female plugs and connectors.

$66.60
$13.32

+ -

MILTON FITTING FEMALE PLUG G-STYLE 1/2"

XM1818

Tru-flate/Parker style interchange series.
“G” style coupler bodies are steel, plated to resist rust.
“G” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300PSI.
Maximum temperature: 250° F.
Air flow: 99 SCFM.
Seals: Buna-N.
1/4” NPT male plug and 3/8” & 1/2” NPT male and female plugs and connectors.

$14.7475

+ -

MILTON MALE PLUG 3/8" G-STYLE

XM1819

3/8” basic size.
“G” style coupler bodies are heavy duty steel.
“G” style plugs are case hardened steel, plated to resist rust.
Push type – body engages automatically.
Maximum inlet pressure: 300 PSI.

$11.79

+ -

MILTON H STYLE FEMALE BODY

XM1833

Industrial interchange series.
3/8” basic size.
“H” style coupler bodies are steel, plated to resist rust.
“H” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 67 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$32.6291

+ -

MILTON H STYLE FEMALE BODY

XM1835

3/8” basic size.
“H” style coupler bodies are heavy duty steel.
“H” style plugs are case hardened steel, plated to resist rust.
Push type – body engages automatically.
Maximum inlet pressure: 300 PSI.

$33.1883

+ -

MILTON MALE PLUG H STYLE 3/8"

XM1837

Industrial interchange series.
3/8” basic size.
“H” style coupler bodies are steel, plated to resist rust.
“H” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 67 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$9.90

+ -

MILTON 3/8 MALE COUPLER PLUG

XM1839

Industrial interchange series.
3/8” basic size.
“H” style coupler bodies are steel, plated to resist rust.
“H” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 67 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$38.50
$7.70

+ -

MILTON MALE PLUG G STYLE 1/2 MNPT

XM1857

Tru-flate/Parker style interchange series.
“G” style coupler bodies are steel, plated to resist rust.
“G” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300PSI.
Maximum temperature: 250° F.
Air flow: 99 SCFM.
Seals: Buna-N.
1/4” NPT male plug and 3/8” & 1/2” NPT male and female plugs and connectors.

$13.26

+ -

MILTON 3/8" MALE PLUG G STYLE

XM1859

Tru-flate/Parker style interchange series.
“G” style coupler bodies are steel, plated to resist rust.
“G” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300PSI.
Maximum temperature: 250° F.
Air flow: 99 SCFM.
Seals: Buna-N.
1/4” NPT male plug and 3/8” & 1/2” NPT male and female plugs and connectors.

$12.285

+ -

MILTON KWIK CHNG COUPLER ASSY 715 BODY WITH 727 MALE PLUG

XM711

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$18.9144

+ -

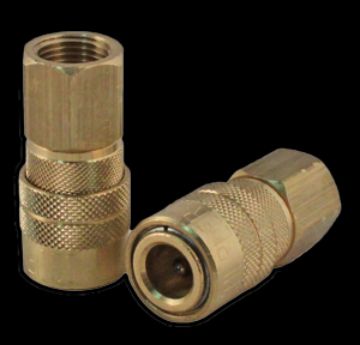

MILTON FEMALE COUPLER 1/4 N.P.T.

XM715

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$82.00
$16.40

+ -

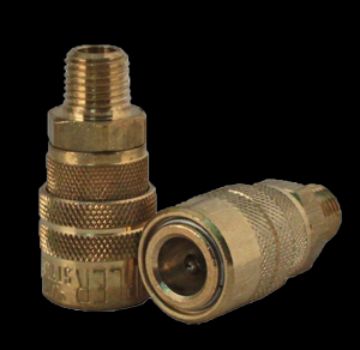

MILTON MALE BODY M STYLE COUPLER 1/4

XM716

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$82.00
$16.40

+ -

MILTON 3/8" BARB W/DRAG GUARD

XM717-6

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.

$23.25

+ -

MILTON FEMALE COUPLER BODY 3/8

XM718

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$21.4125

+ -

MILTON MALE COUPLER PLUG M STYLE 1/4

XM727

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$28.80
$5.76

+ -

MILTON 1/4 NPT, FEM COUPLER PLUG

XM728

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$27.50
$5.50

+ -

MILTON FEMALE COUPLER PLUG 3/8

XM732

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$9.65

+ -

MILTON MALE COUPLER M-STYLE PLUG 3/8"

XM733

Milton “M” style couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
1/4” basic size.
“M” style coupler bodies are brass with brass sleeves.
“M” style plugs are case hardened steel, plated to resist rust.
Maximum inlet pressure: 300 PSI.
Maximum temperature: 250° F.
Air flow: 40 SCFM.
Seals: Buna-N.
1/4” & 3/8” NPT male and female couplers and plugs.

$9.05

+ -
