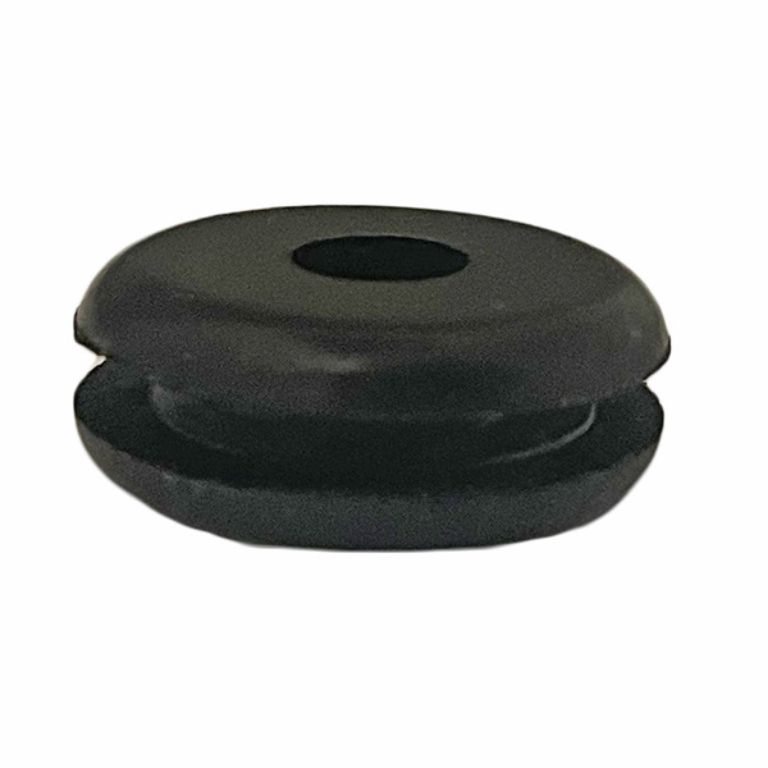

RUBBER GROMMET 5/16"ID, 3/4"DRILL, 1/8"GRV

  • Protects wires from chafing against drilled holes.
  • Grommets are sized by groove width, inside dimension, and groove diameter.
  • Made from 60 durometer SBR rubber.
  • 5/16" inside dimension, 3/4" drill hole, with a 1/8" groove.
    Part #: RG56-18
    Availability:
    In Stock
    Price: $188.50
    $1.885
    i h h
    The RUBBER GROMMET 5/16"ID, 3/4"DRILL, 1/8"GRV is crafted from high-quality styrene-butadiene rubber, offering durability and flexibility. With an inside diameter of 5/16 inches and an overall thickness of 3/8 inches, it effectively protects wiring from abrasion in drilled holes. The grommet features a 3/4-inch groove diameter and a groove width of 1/8 inch, making it suitable for a wide range of applications. It operates efficiently in temperature ranges from -60 F to 180 F, ensuring reliable performance in demanding environments.
    Products specifications
    Overall Thickness 3/8"
    Material Styrene-Butadiene Rubber
    Outer Diameter 1"
    Inside Diameter 5/16"
    Groove Width 1/8"
    Temp. Range Max 180 F
    Temp. Range Min -60 F
    Groove Diameter 3/4"
    Usage Not to be used in chemical or fuel environment
