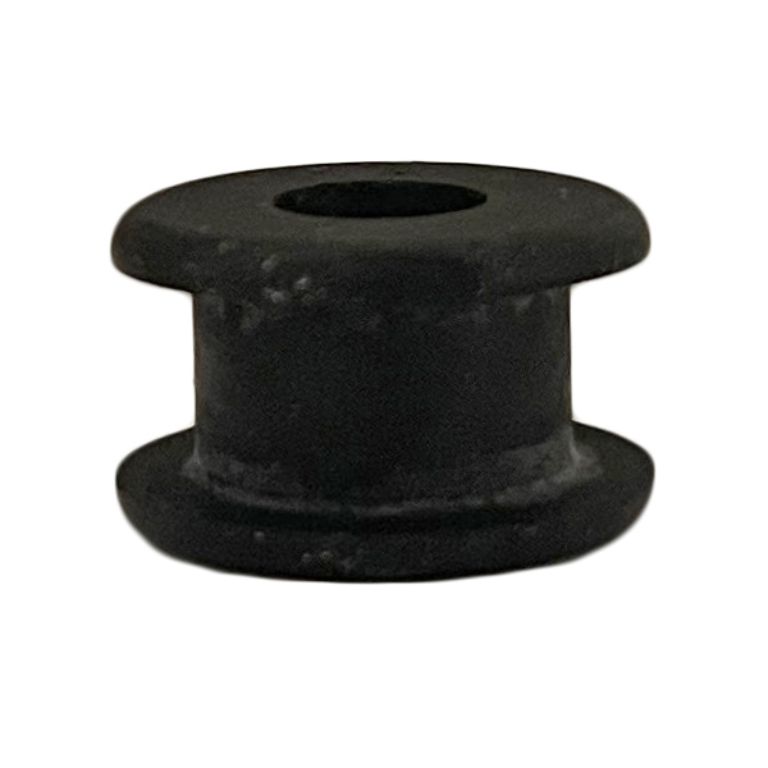

The RUBBER GROMMET 1/4"ID, 7/16"DRILL, 1/4"GRV is crafted from high-quality Styrene-Butadiene Rubber, ensuring excellent durability and flexibility. With an outer diameter of 5/8" and an overall thickness of 3/8", this grommet features a groove diameter of 7/16" and a groove width of 1/4". It effectively safeguards wires from chafing against drilled holes, making it ideal for automotive and industrial applications. This grommet operates efficiently in temperatures ranging from -60 F to 180 F, providing reliable performance in demanding environments.
Products specifications
|
Groove Width
|
1/4" |
|
Groove Diameter
|
7/16" |
|
Outer Diameter
|
5/8" |
|
Overall Thickness
|
3/8" |
|
Temp. Range Max
|
180 F |
|
Inside Diameter
|
1/4" |
|
Material
|
Styrene-Butadiene Rubber |
|
Temp. Range Min
|
-60 F |
|
Usage
|
Not to be used in chemical or fuel environment |
