Nuts
AUVECO WELL NUTS 10/BX #10-32, HEAD .562"
XA13008
- Material: Neoprene with captive brass nut
- #10-32 threads
- Head diameter .562"
- Overal length 1.051"
- Shank diameter .375"
$24.525
AUVECO RUBBER WELL NUT 1/4"-20 SCREW 41/64" STEM BLACK 2,000 BULK BOX
XA13010B
- A well nut is a type of fastener used to blindly fasten a piece (much like an molly bolt) and to seal the bolt hole.
- It consists of a flanged neoprene bushing with a nut embedded in the non-flanged end.
- The bolt is passed through one of the pieces to be fastened and threaded on to the nut from the flanged end.
- The non-flanged end is then inserted through the other piece to be fastened.
- As the bolt is tightened, friction from the neoprene flange against the piece being fastened prevents the nut from turning.
- The bushing is compressed by the nut, forming a lip behind the piece being fastened, which compresses the fastened piece and seals the bolt hole.
- Well nuts are not particularly strong, but are useful for sealing holes and/or isolating vibrations.
- 1/4"-20 threads.
$6,110.00
$3.055
$3.055
WELL NUT 1/4"-20
XACD1420
- A well nut is a type of fastener used to blindly fasten a piece (much like an molly bolt) and to seal the bolt hole.
- It consists of a flanged neoprene bushing with a nut embedded in the non-flanged end.
- The bolt is passed through one of the pieces to be fastened and threaded on to the nut from the flanged end.
- The non-flanged end is then inserted through the other piece to be fastened.
- As the bolt is tightened, friction from the neoprene flange against the piece being fastened prevents the nut from turning.
- The bushing is compressed by the nut, forming a lip behind the piece being fastened, which compresses the fastened piece and seals the bolt hole.
- Well nuts are not particularly strong, but are useful for sealing holes and/or isolating vibrations.
- 1/4"-20 threads.
$399.06
$3.9906
$3.9906

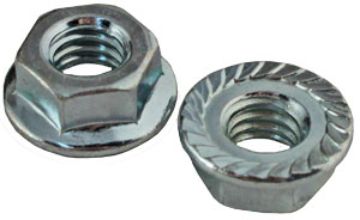

HEX FLANGE NUT ZINC #10-32 SERRATED
XFN1032
- The flange serves to distribute the pressure of the nut over the part being secured.
- Less likely to loosen as a result of an uneven fastening surface.
- Serrated.
- Grade A case hardened.
- Size: #10-32.
$26.40
$0.264
$0.264
HEX FLANGE NUT METRIC ZINC M10-1.50
XFN10M
- A flange nut has a wide flange at one end that acts as an integrated washer.
- The flange serves to distribute the pressure of the nut over the part being secured.
- Less likely to loosen as a result of an uneven fastening surface.
- Serrated.
- Size: M10-1.50.
$25.28
$0.5056
$0.5056
HEX FLANGE NUT ZINC 1/2"-13 SERRATED
XFN1213
- The flange serves to distribute the pressure of the nut over the part being secured.
- Less likely to loosen as a result of an uneven fastening surface.
- Serrated.
- Grade A case hardened.
- Size: 1/2"-13".
$29.64
$0.5928
$0.5928

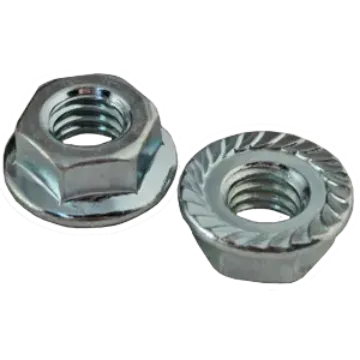

HEX FLANGE NUT ZINC 1/4"-20
XFN1420
- The flange serves to distribute the pressure of the nut over the part being secured.
- Less likely to loosen as a result of an uneven fastening surface.
- Serrated.
- Grade A case hardened.
- Size: 1/4"-20.
$21.15
$0.2115
$0.2115

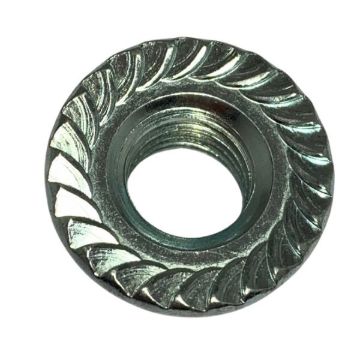

HEX FLANGE NUT METRIC ZINC M12-1.75 SERRATED
XFN12M10
- A flange nut has a wide flange at one end that acts as an integrated washer.
- The flange serves to distribute the pressure of the nut over the part being secured.
- Less likely to loosen as a result of an uneven fastening surface.
- Serrated.
- Size: M12-1.75.
- Class 10.9
$165.10
$1.651
$1.651
HEX FLANGE NUT ZINC 3/8"-16
XFN3816
- A flange nut has a wide flange at one end that acts as an integrated washer.
- The flange serves to distribute the pressure of the nut over the part being secured.
- Less likely to loosen as a result of an uneven fastening surface.
- Serrated.
- Grade A case hardened.
- Size: 3/8"-16.
$72.16
$0.7216
$0.7216
