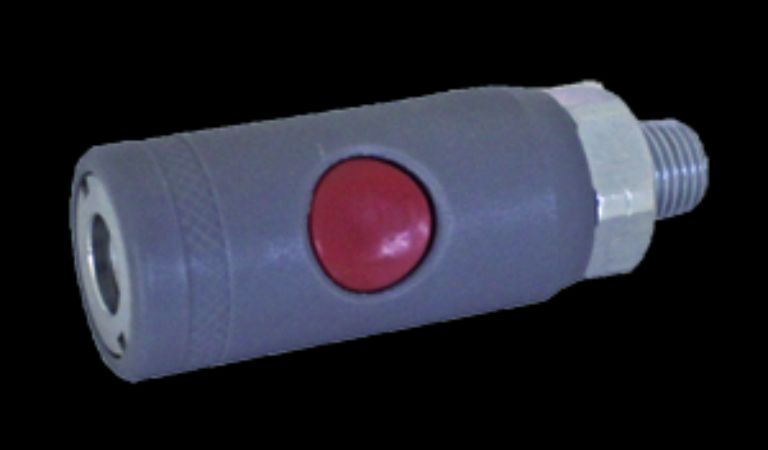

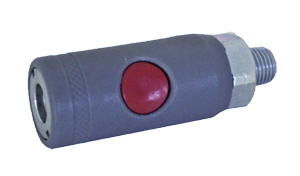

MILTON M STYLE SAFETY COUPLER 1/4 MALE PIPE

  • Push button safety couplers
  • 1/4” basic size & 1/4” NPT male and female plugs and couplers available.
  • Double click to engage properly. First click locks coupler and plug; the second click engages the air pressure.
  • To disconnect push the button twice. The first push relieves the air pressure; the second push allows the couple and plug to be disengaged.
  • Coupler body shell material: Fiberglass filled nylon 66
  • Maximum inlet pressure: 225 PSI.
  • Temperature range: -60° F to 140° F.
  • Air flow: 36 SCFM @ 90 PSI.
  • Rubber seal: NBR 80
    Part #: XMS99706
    Availability:
    In stock
    Price: $36.9023
    i h h
    The Milton M Style Safety Coupler is designed for optimal safety with a push-button mechanism that ensures a secure connection and easy disconnection. Featuring a 1/4 NPT male fitting, this coupler locks in place with a double click, first securing the connection and then engaging air pressure. To disconnect, simply push the button twice to relieve pressure and disengage. Made from fiberglass filled nylon 66, it withstands a maximum inlet pressure of 225 PSI and operates effectively in temperatures ranging from -60 F to 140 F. Ideal for various air tool applications.
    Products specifications
    Style M-Style
