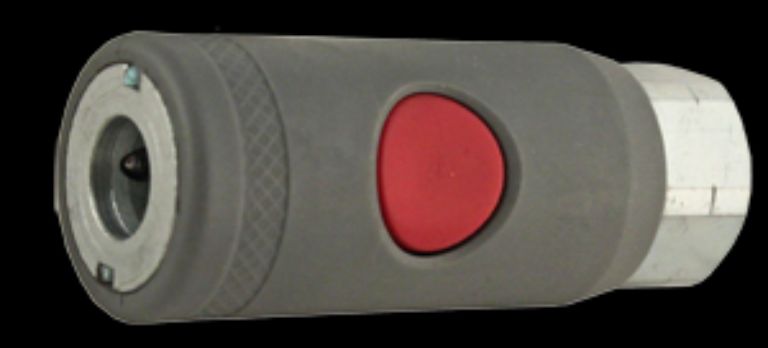

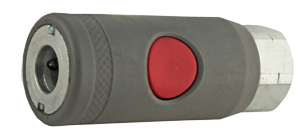

MILTON 1/4" FEM SAFETY COUPLER M STYLE

  • Push button safety couplers
  • 1/4” basic size & 1/4” NPT male and female plugs and couplers available.
  • Double click to engage properly. First click locks coupler and plug; the second click engages the air pressure.
  • To disconnect push the button twice. The first push relieves the air pressure; the second push allows the couple and plug to be disengaged.
  • Coupler body shell material: Fiberglass filled nylon 66
  • Maximum inlet pressure: 225 PSI.
  • Temperature range: -60° F to 140° F.
  • Air flow: 36 SCFM @ 90 PSI..
  • Rubber seal: NBR 80
    Part #: XMS99705
    Availability:
    In Stock
    Price: $36.6041
    i h h
    The MILTON 1/4" Fem Safety Coupler M Style features a push button design that enhances safety and efficiency during air tool operations. It incorporates a double click mechanism to engage and disengage the air pressure securely, with a maximum inlet pressure of 225 PSI. The coupler body is made from durable fiberglass filled nylon 66, ensuring resilience in demanding environments. Operating effectively in a temperature range of -60 F to 140 F, this coupler is ideal for a variety of industrial applications requiring reliable air connections.
    Products specifications
    Style M-Style
