Fuse Blocks / Panels
FUSE BLOCK - ATO/ATC 4 GANG ATO/ATC, W/CONTACTS
ATCFB4
- Heavy duty ATO/ATC fuse block.
- Units slide together to gang for multiple combinations.
- Includes 10-12 gauge terminal contacts.
- Mounting holes for #10 screws are 3-1/8" apart.
$9.8365

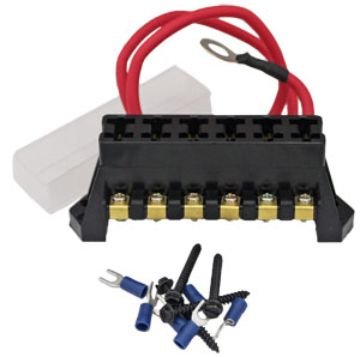

FUSE BLOCK ATO/ATC 6 GANG
X73897
- Screw terminals
- Clear cover
- 30 amp max per branch
- Rated for 65 amps total
$54.446
FUSE BLOCK ATO/ATC 8 GANG W/GROUND LUG
XB15600-08-21
- Heavy duty ATO/ATC fuse blocks.
- Accepts ATO/ATC blade fuses or blade tpye circuit breakers.
- With ground pad terminal strip
$76.71

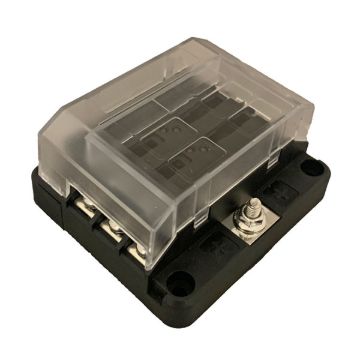

RT 6 GANG FUSE BLOCK
XFB8028
- Blown fuse LEDs indication for speed correction of system faults, improve ability to diagnose customer issues remotely
- Designed with stainless steel self-locking hardware and optional weather-proof labels in standard options
- Supports SAE Circuit Protection Standards
- Use with ATO/ATC blade fuses
- Input Terminal Size: M5
- Recommended Input Wire Size: 6 Ga.
- Recommended Output Wire Size: 10 Ga.
- Clear insulating cover designed for water and dust proofing
- Maximum Current: 100A
- Maximum Current Per Circuit: 30A
$47.95

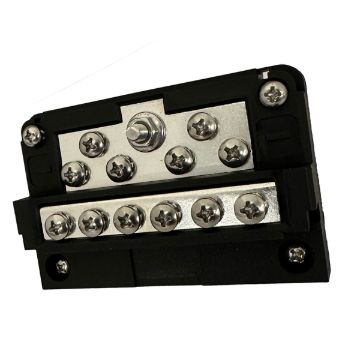

RT 12 GANG, GROUND BUS BAR, 100 AMP MAX
XFB8030
- All attachment hardware is constructed of stainless steel with self-locking mechanisms for long lasting installation
- Plated copper alloy busbar conductor withstands corrosion and maximizes conductivity
- Engineering grade composite insulator supports high-temperature application exposure, such as engine compartments
- Output Terminal Connection: M4
- Number of Positions: 12
- RT Series Fuse Blocks sold separately
$27.375
FUSE BLOCK - ATO/ATC 4 GANG ATO/ATC, NO CONTACTS
X12004943
- Units slide together to gang for multiple combinations.
- Mounting holes for #10 screws are 3-1/8" apart.
- Does not include terminals
$5.634
FUSE BLOCK - ATO/ATC 10 FUSE, MAX LOAD 150 AMPS
HDFB10
- Heavy duty ATO/ATC fuse blocks.
- Accommodates 10 fuses.
- 1/4" male blade side terminals.
- 30 amps per circuit.
- 12 volts.
- Clear acrylic dust cover with fastening nut.
$42.84

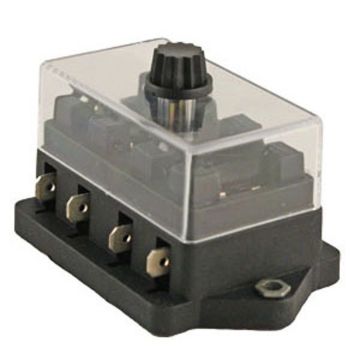

FUSE BLOCK - ATO/ATC 4 FUSE, MAX LOAD 60 AMPS
HDFB4
- Heavy duty ATO/ATC fuse blocks.
- Accomodates 4 fuses.
- 1/4" male blade side terminals.
- 30 amps per circuit.
- 12 volts.
- Clear acrylic dust cover with fastening nut.
$23.8875
FUSE BLOCK - ATO/ATC 12 FUSE, MAX LOAD 180 AMPS
HDFB12
- Heavy duty ATO/ATC fuse blocks.
- Accomodates 12 fuses.
- 1/4" male blade side terminals.
- 30 amps per circuit.
- 12 volts.
- Clear acrylic dust cover with fastening nut.
$48.16

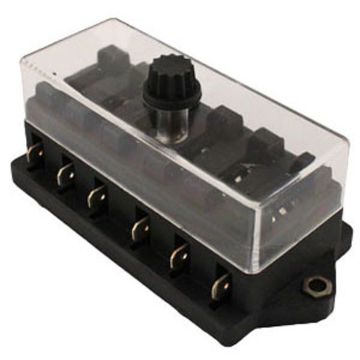

FUSE BLOCK - ATO/ATC 6 FUSE, MAX LOAD 90 AMPS
HDFB6
- Heavy duty ATO/ATC fuse blocks.
- Accomodates 6 fuses.
- 1/4" male blade side terminals.
- 30 amps per circuit.
- 12 volts.
- Clear acrylic dust cover with fastening nut.
$33.1125

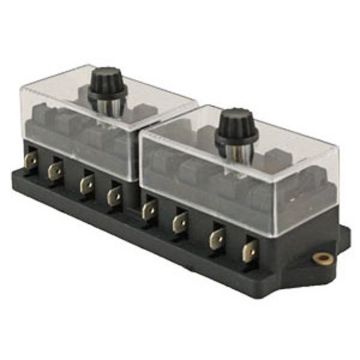

FUSE BLOCK - ATO/ATC 8 FUSE, MAX LOAD 120 AMPS
HDFB8
- Heavy duty ATO/ATC fuse blocks.
- Accomodates 8 fuses.
- 1/4" male blade side terminals.
- 30 amps per circuit.
- 12 volts.
- Clear acrylic dust cover with fastening nut.
$37.135
FUSE BLOCK - MINI FUSE 10 FUSE, MAX LOAD 90 AMPS
MINFB10
- ATM/ mini fuse block.
- Accomodates 10 fuses.
- 1/4" male blade side terminals.
- 15 amps per circuit.
- 12 volts.
- Clear cover with insulated o-ring creates a water resistant seal.
- Recommended for supplemental accessory power requirements.
$59.50

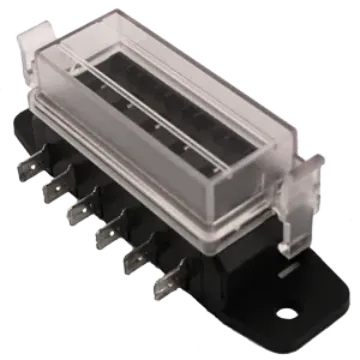

FUSE BLOCK - MINI FUSE 6 FUSE, MAX LOAD 45 AMPS
MINFB6
- ATM/ mini fuse block.
- Accomodates 6 fuses.
- 1/4" male blade side terminals.
- 15 amps per circuit.
- 12 volts.
- Clear cover with insulated o-ring creates a water resistant seal.
- Recommended for supplemental accessory power requirements.
$40.46

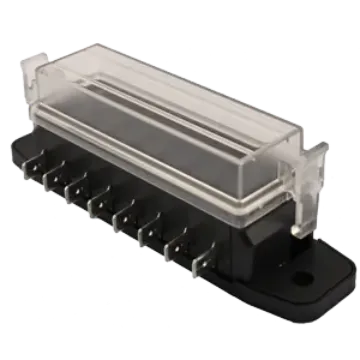

FUSE BLOCK - MINI FUSE 8 FUSE, MAX LOAD 60 AMPS
MINFB8
- ATM/ mini fuse block.
- Accomodates 8 fuses.
- 1/4" male blade side terminals.
- 15 amps per circuit.
- 12 volts.
- Clear cover with insulated o-ring creates a water resistant seal.
- Recommended for supplemental accessory power requirements.
$44.345

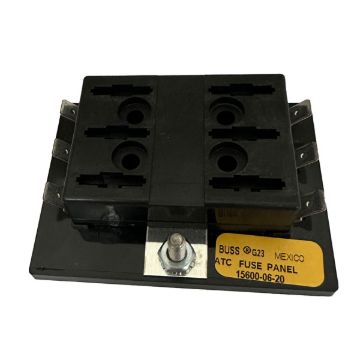

FUSE PANEL - ATO/ATC 6 POSITION #15600-06-20
XP52-406
- Heavy duty ATO/ATC fuse blocks.
- Accepts ATO/ATC blade fuses or blade tpye circuit breakers.
- Output terminals - .250" x .032" OC rated 30A max.
- #10-32 stud imput rated 150A max.
- 6 position.
- Black, UL rated 94 VO thermoplastic, -20° F to 150° F.
- Compact and light weight, yet rugged enough for use in truck, buses, RV's etc.
$35.98

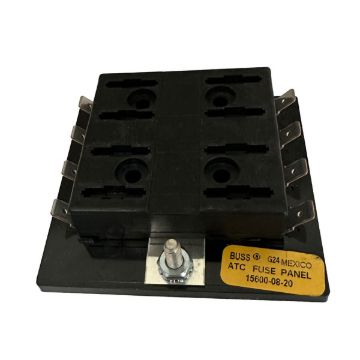

FUSE PANEL - ATO/ATC 8 POSITION
XP52-408
- Heavy duty ATO/ATC fuse blocks.
- Accepts ATO/ATC blade fuses or blade tpye circuit breakers.
- Output terminals - .250" x .032" OC rated 30A max.
- #10-32 stud imput rated 150A max.
- 8 position.
- Black, UL rated 94 VO thermoplastic, -20° F to 150° F.
- Compact and light weight, yet rugged enough for use in truck, buses, RV's etc.
$46.3225
FUSE PANEL - ATO/ATC 10 POSITION
XP52-410
- Heavy duty ATO/ATC fuse blocks.
- Accepts ATO/ATC blade fuses or blade tpye circuit breakers.
- Output terminals - .250" x .032" OC rated 30A max.
- #10-32 stud imput rated 150A max.
- 10 position.
- Black, UL rated 94 VO thermoplastic, -20° F to 150° F.
- Compact and light weight, yet rugged enough for use in truck, buses, RV's etc.
$64.3461
FUSE PANEL - ATO/ATC 12 POSITION
XP52-412
- Heavy duty ATO/ATC fuse blocks.
- Accepts ATO/ATC blade fuses or blade tpye circuit breakers.
- Output terminals - .250" x .032" OC rated 30A max.
- #10-32 stud imput rated 150A max.
- 12 position.
- Black, UL rated 94 VO thermoplastic, -20° F to 150° F.
- Compact and light weight, yet rugged enough for use in truck, buses, RV's etc.
$63.6125

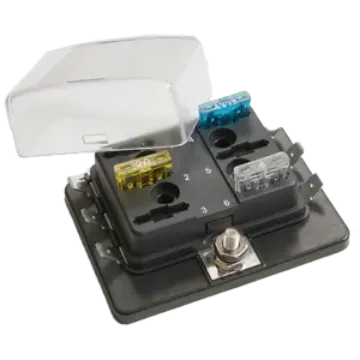

FUSE BLOCK ATO/ATC 6 GANG W/COVER
XATCFB6WC
- Heavy duty ATO/ATC fuse block.
- 6 position
- Includes cover
$17.296

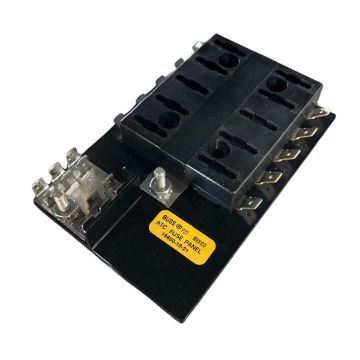

FUSE BLOCK ATO/ATC 10 GANG W/GROUND LUG
XB15600-10-21
- ATC fuse panel.
- Accommodates 10 fuses.
- 1/4" male blade side terminals.
- 30 amps per circuit.
- 12 volts.
- Ground terminal pad included.
$89.13
FUSE BLOCK ATC 12 GANG W/NEG BUS AND COV 2 ISOLATED 6 CIR FUSE BLOCKS
XBS880066
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- One-piece stainless flange nuts ensure safe and secure connections
- Easy to open, push button latch for easy access to fuses
- Fuses sold separately
$98.1475
