Brass Fittings
SAE 45 DEGREE FLARE, 90 DEGREE MALE CONNECTOR 1/2" TUBE X 1/4" MALE PIPE
X49X8X4
- SAE 45 Degree Flare
- Manufactured from either CA360, CA345 or CA377 brass.
- Meets functional requirements of SAE J512 and J513.
- Used with copper, brass, aluminum and steel hydraulic tubing.
- The tubing is flared on one end to accept the brass fitting.
- This type of fitting has the cone shape on the straight thread end.
- This fitting is used with LP and natural gas, instrumentation, power steering, hydraulic and pneumatic systems.
- 90° male elbow
- Size 1/2" tube, 1/4" male pipe
$63.225
$12.645
$12.645
SAE 45 DEGREE FLARE, 90 DEGREE MALE CONNECTOR 1/2" TUBE X 1/2" MALE PIPE
X49X8X8
- SAE 45 Degree Flare
- Manufactured from either CA360, CA345 or CA377 brass.
- Meets functional requirements of SAE J512 and J513.
- Used with copper, brass, aluminum and steel hydraulic tubing.
- The tubing is flared on one end to accept the brass fitting.
- This type of fitting has the cone shape on the straight thread end.
- This fitting is used with LP and natural gas, instrumentation, power steering, hydraulic and pneumatic systems.
- 90° male elbow
- Size 1/2" tube, 1/2" male pipe
$56.2725
$11.2545
$11.2545
BRASS TRANSMISSION SPLIT SLEEVE 1/8"
X60TFX2
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- Split sleeve
- Size 1/8" tubing o.d.
$42.25
$1.69
$1.69
BRASS TRANSMISSION SPLIT SLEEVE 5/32"
X60TFX532
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- Size 5/32" tubing o.d.
$85.605
$3.4242
$3.4242
BRASS COMPRESSION SLEEVE 1/8"
X60X2
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 1/8" tubing o.d.
$24.50
$0.98
$0.98
BRASS COMPRESSION SLEEVE 1/4"
X60X4
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 1/4" tubing o.d.
$35.75
$1.43
$1.43
BRASS COMPRESSION SLEEVE 3/8"
X60X6
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Compression sleeve
- Size 3/8" tubing o.d.
$18.935
$0.7574
$0.7574
BRASS TRANSMISSION NUT 1/8"
X61TFX2
- Transmission fitting
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
$134.70
$5.388
$5.388

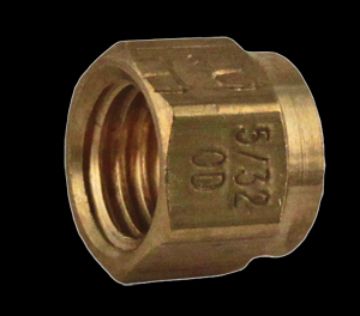

BRASS TRANSMISSION NUT 5/32"
X61TFX532
- Transmission fitting
- These are typically used in pressure protected air transmission applications and air seats.
- The fittings use a notched sleeve to help eliminate stress from over-torque.
- These fittings are used with smaller nylon tubing, usually 1/8" and 5/32".
- These are DOT approved.
- Easy to assemble, no flaring required.
- Size 5/32" tubing o.d.
$87.00
$3.48
$3.48
BRASS COMPRESSION NUT 1/8"
X61X2
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Brass compression nut
- Size 1/8" tubing o.d.
$10.752
$1.0752
$1.0752

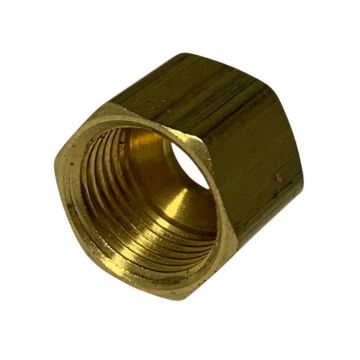

BRASS COMPRESSION NUT 1/4"
X61X4
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Brass compression nut
- Size 1/4" tubing o.d.
$24.44
$2.444
$2.444
BRASS COMPRESSION NUT 1/2"
X61X8
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Brass compression nut
- Size 1/2" tubing o.d.
$35.148
$3.5148
$3.5148
BRASS COMPRESSION NUT 3/8"
X61X6
- Compression brass fitting
- Meets functional requirements of SAE J512.
- No flaring, soldering or other preparation of tubing necessary to assemble.
- It is used with aluminum, copper and plastic tubing.
- Not recommended for use with steel tubing.
- Brass compression nut
- Size 3/8" tubing o.d.
$39.18
$3.918
$3.918
PUSH TO CONNECT, NICKEL PLATED BRASS, UNION 5/32" TUBE
X62PL-532
- Ready to use compact one-piece fittings for use with most thermoplastic tubing.
- Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
- No special tools are needed for assembly.
- Designed to be used with no tube support.
- Union connector
$82.24
$16.448
$16.448
PUSH TO CONNECT BRASS DOT UNION 5/8" TUBE
X62PMTX10
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 5/8" tubing o.d.
$162.375
$32.475
$32.475
PUSH TO CONNECT BRASS DOT UNION 3/4" TUBE
X62PMTX12
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 3/4" tubing o.d.
$68.208
PUSH TO CONNECT BRASS UNION 1/8" TUBE
X62PMTX2
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/8" tubing o.d.
$84.98
$16.996
$16.996
PUSH TO CONNECT BRASS DOT UNION 1/4" TUBE
X62PMTX4
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/4" tubing o.d.
$66.9375
$13.3875
$13.3875
PUSH TO CONNECT BRASS DOT UNION 5/32" TUBE
X62PMTX532
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 5/32" tubing o.d.
$88.16
$17.632
$17.632
PUSH TO CONNECT BRASS DOT UNION 3/8" TUBE
X62PMTX6
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 3/8" tubing o.d.
$82.72
$16.544
$16.544
PUSH TO CONNECT BRASS DOT UNION 3/16" TUBE
X62PMX3
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 3/16" tubing o.d.
$114.75
$22.95
$22.95
PUSH TO CONNECT BRASS UNION 1/8" TUBE
X62PMX2
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/8" tubing o.d.
$71.40
$14.28
$14.28
PUSH TO CONNECT BRASS DOT UNION 1/2" TUBE
X62PMTX8
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 1/2" tubing o.d.
$98.1375
$19.6275
$19.6275
PUSH TO CONNECT BRASS DOT UNION 5/32" TUBE
X62PMX532
- These are the quick disconnect version of nylon air brake (DOT) brass fittings.
- They are DOT approved and will be marked as such.
- Used with SAE J844 nylon tubing, no special tools required.
- There are no nuts or sleeves used in their application.
- Size 5/32" tubing o.d.
$88.16
$17.632
$17.632
BRASS PEX UNION 1/2" PUSH TO CONNECT
X62PEX8
- QuickBite Pex Union, no crimping, gluing or soldering required. Push the tube in and you're done
- Certified to 200PSI and 180°F
- Works with PEX, CPVC and copper tubing
- PEX stiffener pre-installed - Easy to remove for PVC or copper installations
- Lead-free brass
- Full flow
- Removable and resusable
- 1/2" tube to 1/2" tube
$19.48
