Ram Products | Brass Fittings

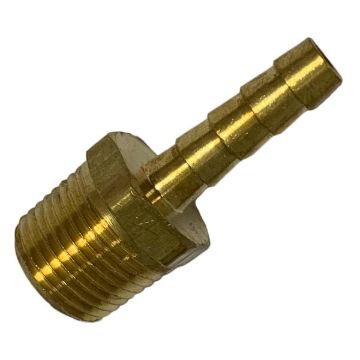

BRASS BARB FITTING MALE CONN 5/16 HOSE 1/8 PIPE

XBARBM5X2

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
These fittings are intended to be used with worm gear hose clamps.
Male connector
Size 5/16″ hose i.d., 1/8″ male pipe

$17.28
$3.456

+ -

BRASS BARB FITTING HOSE SPLICER 5/8 HOSE

XBARBU10

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
These fittings are intended to be used with worm gear hose clamps.
Union connector
Size 5/8" hose i.d.

$40.04
$8.008

+ -

BRASS BARB FITTING HOSE SPLICER 3/4 HOSE

XBARBU12

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
These fittings are intended to be used with worm gear hose clamps.
Union connector
Size 3/4" hose i.d.

$57.33
$11.466

+ -

HOSE END MALE PIPE RIGID 1/4" HOSE X 1/4" MALE PIPE

X10004B-104

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
Typical application: Low pressure shop or service air lines.
Male pipe rigid connector
Size 1/4" hose i.d., 1/4" male pipe

$56.88
$5.688

+ -

HOSE MENDER, BARB UNION, 5/16" HOSE

X10005B-Y05

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
Typical application: Low pressure shop or service air lines.
Union connector (hose mender)
Size 5/16" hose i.d.

$8.275

+ -

HOSE END MALE PIPE RIGID 3/8" HOSE X 1/4" MALE PIPE

X10006B-104

Quick and economical way to connect tubing.
Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
Typical application: Low pressure shop or service air lines.
Male pipe rigid connector
Size 3/8" hose i.d., 1/4" male pipe

$30.635
$6.127

+ -

HOSE END MALE PIPE RIGID 3/8 HOSE 3/8 PIPE

X10006B-106

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
Typical application: Low pressure shop or service air lines.
Male pipe rigid connector
Size 3/8" hose i.d., 3/8" male pipe

$73.975
$7.3975

+ -

HOSE END FEMALE SWIVEL SAE 45 DEGREE FLARE 3/8" HOSE X 3/8" TUBE

X10006B-406

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
Typical application: Low pressure shop or service air lines.
SAE 45° flare female swivel connector
Size 3/8" hose i.d., 3/8" tube

$7.8958

+ -

HOSE END MALE PIPE RIGID 1/2" HOSE X 1/4" MALE PIPE

X10008B-104

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
Typical application: Low pressure shop or service air lines.
Male pipe rigid connector
Size 1/2" hose i.d., 1/4" male pipe

$9.297

+ -

HOSE END SPLICER 1/2 HOSE

X10008B-Y08

Compact one-piece, push-on barbed fittings.
Quick and economical way to connect tubing.
Easy to assemble, just push the fitting onto the hose. No hose clamp needed.
Typical application: Low pressure shop or service air lines.
Union connector (hose mender)
Size 1/2" hose i.d.

$79.60
$7.96

+ -

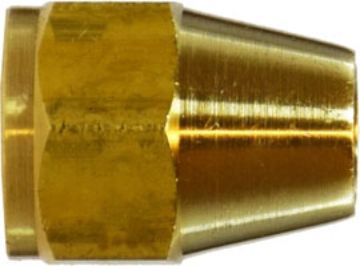

SAE 45 DEGREE FLARE NUT 3/8"

X1110X6

Manufactured from either CA360, CA345 or CA377 brass.
Meets functional requirements of SAE J512 and J513.
Used with copper, brass, aluminum and steel hydraulic tubing.
The tubing is flared on one end to accept the brass fitting.
This type of fitting has the cone shape on the straight thread end.

$62.37
$6.237

+ -

PUSH TO CONNECT, NON-DOT, BRASS UNION, 1/8" TUBE

X1162X2

Ready to use compact one-piece fittings for use with most thermoplastic tubing.
Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
No special tools are needed for assembly.
Designed to be used with no tube support.
Union connector

$78.6315
$15.7263

+ -

PUSH TO CONNECT, NON-DOT, BRASS UNION, 3/16" TUBE

X1162X3

Ready to use compact one-piece fittings for use with most thermoplastic tubing.
Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
No special tools are needed for assembly.
Designed to be used with no tube support.
Union connector

$84.7875
$16.9575

+ -

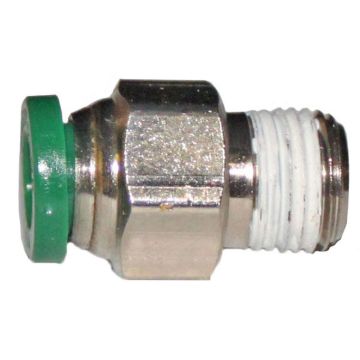

PUSH TO CONNECT, NON-DOT, NICKLE PLATED BRASS, STRAIGHT MALE CONNECTOR, 1/4" TUBE X 1/8" PIPE

X1168X4

Ready to use compact one-piece fittings for use with most thermoplastic tubing.
Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
No special tools are needed for assembly.
Designed to be used with no tube support.
Union connector

$61.3125
$12.2625

+ -

PUSH TO CONNECT, NON-DOT, NICKLE PLATED BRASS, STRAIGHT MALE CONNECTOR, 3/8" TUBE X 1/4" PIPE

X1168X6

Ready to use compact one-piece fittings for use with most thermoplastic tubing.
Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
No special tools are needed for assembly.
Designed to be used with no tube support.
Union connector
3/8" tube to 1/4" male pipe

$84.18
$16.836

+ -

PUSH TO CONNECT, NON-DOT, NICKLE PLATED BRASS, SWIVEL, MALE 90 DEGREE ELBOW, 5/32" TUBE X 1/8" PIPE

X1169X2.5S

Push to connect fitting
Ready to use compact one-piece fittings for use with most thermoplastic tubing.
Specially designed for low pressure circuits where fast assembly, disassembly and reassembly is important.
No special tools are needed for assembly.
Designed to be used with no tube support.
90° male elbow
Size 5/32" tubing o.d., 1/8" male pipe

$204.225
$20.4225

+ -
