Bolts
FRAME BOLT FLANGE HD, NON-SERRATED, UNC BLACK 5/8"-11 X 1-1/2" GR8
X58X112CFL8
- Made from high alloy steel.
- One piece hex washer head bolt with a flat bearing surface.
- For use on truck frames.
- Flange eliminates washers and helps compensate for a misaligned hole.
- Plain black finish.
- Tensile strength: 150,000 psi minimum.
- Unified screw threads: UNC.
- Diameter: 5/8"-11.
- Length: 1-1/2".
$156.84
$6.2736
$6.2736
FRAME BOLT FLANGE HD, NON-SERRATED, UNC BLACK 5/8"-11 X 2", GR 8
X58X2CFL8
- Made from high alloy steel.
- One piece hex washer head bolt with a flat bearing surface.
- For use on truck frames.
- Flange eliminates washers and helps compensate for a misaligned hole.
- Plain black finish.
- Tensile strength: 150,000 psi minimum.
- Unified screw threads: UNC.
- Diameter: 5/8"-11.
- Length: 2".
$110.595
$4.4238
$4.4238
BUTTON HD SOCKET CAPSCREW UNC STAINLESS #6-32 X 1/4"
X632X14BHCS
- Made from stainless steel.
- The dome shaped head is wider and has a lower profile than a socket cap screw.
- Knurled cylindrical sides and hexagonal recess.
- Ideal for precision assembly work with close tolerances, and applications needing a well tooled appearance.
- Supplies greater tensile strength than equivalent sizes of grade 5 and grade 8 hex cap screws while requiring less surface area or counterbore since the fastener is internally wrenched.
$10.80
$0.108
$0.108
MACHINE SCREW PHIL FLAT HD #6-32 X 1" STAINLESS
X632X1FHPS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
$19.20
$0.192
$0.192
SOCKET HEAD CAPSCREW UNC PLAIN #6-32 X 1"
X632X1SHC
- Made from alloy steel.
- Cylindrical head with a flat chamfered top surface.
- Knurled cylindrical sides and hexagonal recess.
- Ideal for precision assembly work with close tolerances, and applications needing a well tooled appearance.
- Supplies greater tensile strength than equivalent sizes of grade 5 and grade 8 hex cap screws while requiring less surface area or counterbore since the fastener is internally wrenched.
- Plain black finish.
- Diameter: #6-32
- Length: 1"
$27.96
$0.2796
$0.2796
MACHINE SCREW PHIL TRUSS HD #6-32 X 3/4" STAINLESS
X632X34THPS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
$24.00
$0.24
$0.24
HEX CAP SCREW UNC STAINLESS 7/16"-14 X 1-1/2"
X76112CSS
- Hex Cap Screw
- Used in products that require general atmospheric corrosion resistance such as chemical and food processing equipment and marine applications
- Tensile strength: 100,000 psi. minimum
- 18-8 Stainless Steel
- Diameter: 7/16"-14
- Length: 1-1/2"
$65.62
$1.3124
$1.3124
MACHINE SCREW PHIL PAN HD #8-32 X 1-1/2" STAINLESS
X832X112PSS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
- Made from 18-8 stainless
- Pan head Phillips.
- 8-32 diameter.
- Length of 1-1/2".
$32.40
$0.324
$0.324
MACHINE SCREW PHIL FLAT HD #8-32 X 1/2" STAINLESS
X832X12FHPS
- A straight shank fastener with external threads designed to go through a hole or nut that is pre-tapped to form a mating thread for the screw.
- Machine screws form a fastening superior in strength to spaced thread screws.
- Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance.
- Used in food processing machinery and refrigeration equipment.
- Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.
$24.00
$0.24
$0.24
SOCKET HEAD CAPSCREW UNC PLAIN #8-32 X 3/8"
X832X38SHC
- Made from alloy steel.
- Cylindrical head with a flat chamfered top surface.
- Knurled cylindrical sides and hexagonal recess.
- Ideal for precision assembly work with close tolerances, and applications needing a well tooled appearance.
- Supplies greater tensile strength than equivalent sizes of grade 5 and grade 8 hex cap screws while requiring less surface area or counterbore since the fastener is internally wrenched.
- Plain black finish.
- Diameter: #8-32
- Length: 3/8"
$25.02
$0.2502
$0.2502
HEX CAP SCREW BOLT METRIC ZINC M8-1.25 X 45 CL 10.9
X8X45M10.9
- Hex head cap screw with metric thread pitch made from medium carbon alloy steel.
- Heat treated.
- Tensile strength: 1040 Newtons/mm² minimum.
- Zinc plated.
- Metric coarse threads.
- Diameter: M8-1.25.
- Length: 45 mm.
$31.625
$0.6325
$0.6325
HEX CAP SCREW BOLT METRIC ZINC M10-1.25 X 30 CL 8.8
X10X1.25X30M
- Hex head cap screw with metric thread pitch made from medium carbon steel.
- Heat treated.
- Tensile strength: 800 Newtons/mm² minimum.
- Zinc plated.
- Metric fine threads.
- Diameter: M10-1.25.
- Length: 30 mm.
$71.345
$1.4269
$1.4269
HEX CAP SCREW BOLT METRIC ZINC M10-1.50 X 40 CL 10.9
X10X40M10.9
- Hex head cap screw with metric thread pitch made from medium carbon alloy steel.
- Heat treated.
- Tensile strength: 1040 Newtons/mm² minimum.
- Zinc plated.
- Metric coarse threads.
- Diameter: M10-1.50.
- Length: 40 mm.
$33.025
$0.6605
$0.6605

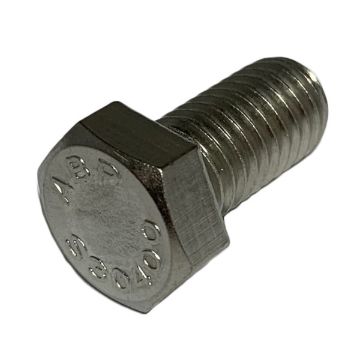

HEX CAP SCREW UNC STAINLESS 1/2"-13 X 3-1/2"
X12312CSS
- Grade 18-8 stainless steel hex cap screws.
- Used in products that require general atmospheric corrosion resistance such as chemical and food processing equipment and marine applications.
- Tensile strength: 100,000 psi. minimum.
- Unified screw threads :UNC.
- Diameter: 1/2"-13.
$90.00
$3.60
$3.60
HEX CAP SCREW UNC STAINLESS 1/2"-13" X 4-1/2"
X12412CSS
- Hex Cap Screw
- Used in products that require general atmospheric corrosion resistance such as chemical and food processing equipment and marine applications
- Tensile strength: 100,000 psi. minimum
- 18-8 Stainless Steel
- Diameter: 1/2"-13
- Length: 4-1/2"
$110.50
$4.42
$4.42
FRAME BOLT FLANGE HD, NON-SERRATED, UNC BLACK 1/2"-13 X 1-1/4" GR8
X12X114CFL8
- Made from high alloy steel.
- One piece hex washer head bolt with a flat bearing surface.
- For use on truck frames.
- Flange eliminates washers and helps compensate for a misaligned hole.
- Plain black finish.
- Tensile strength: 150,000 psi minimum.
- Unified screw threads: UNC.
- Diameter: 1/2"-13.
- Length: 1-1/4".
$113.46
$2.2692
$2.2692
FRAME BOLT FLANGE HD, NON-SERRATED, UNC BLACK 1/2"-13 X 2-1/2" GR8
X12X212CFL8
- Made from high alloy steel.
- One piece hex washer head bolt with a flat bearing surface.
- For use on truck frames.
- Flange eliminates washers and helps compensate for a misaligned hole.
- Plain black finish.
- Tensile strength: 150,000 psi minimum.
- Unified screw threads: UNC.
- Diameter: 1/2"-13.
- Length: 2-1/2".
$78.2325
$3.1293
$3.1293
BUTTON HD SOCKET CAPSCREW UNC STAINLESS 1/4"-20 X 1/2"
X1420X12BHCS
- Made from stainless steel.
- The dome shaped head is wider and has a lower profile than a socket cap screw.
- Knurled cylindrical sides and hexagonal recess.
- Ideal for precision assembly work with close tolerances, and applications needing a well tooled appearance.
- Supplies greater tensile strength than equivalent sizes of grade 5 and grade 8 hex cap screws while requiring less surface area or counterbore since the fastener is internally wrenched.
$20.24
$0.2024
$0.2024
