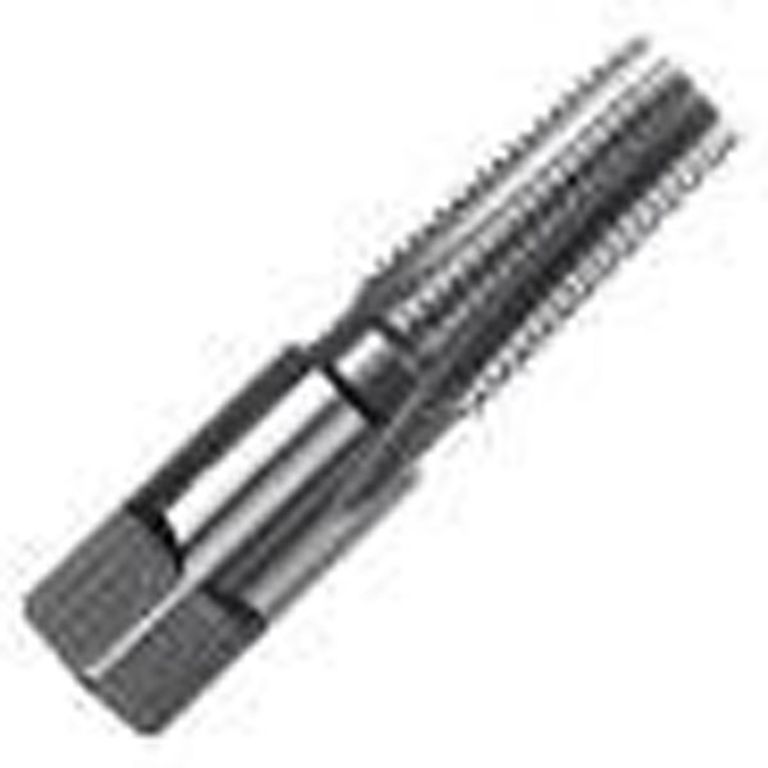

TAP-HIGH SPEED, PIPE-TAPER 1/4" NPT

  • Taper pipe tap
  • Made from high quality high speed steel.
  • For the tapping of pipe and pipe fittings.
  • Designed to produce threads where mated parts are not required to withstand high fluid or gas pressures.
  • Use where the use of a sealing compound or tape is acceptable to produce a leakproof thread.
  • Chamfer length: 1-2 pitches.
  • Size: 1/4-18 NPT.
  • Number of flutes: 4.
  • Length of thread: 1-1/6".
  • Overall length: 2-7/16".
    Part #: X14MPTTAP
    Availability:
    In Stock
    Price: $74.1449
    i h h
    The TAP-HIGH SPEED, PIPE-TAPER 1/4" NPT is crafted from high-quality high-speed steel, ensuring durability and precision. This taper pipe tap is designed for tapping pipe and pipe fittings where high fluid or gas pressure is not a concern. It produces threads suitable for applications using sealing compounds or tapes. With a chamfer length of 1-2 pitches, four flutes for efficient cutting, a thread length of 1-1/6", and an overall length of 2-7/16", this tap is optimal for reliable performance in various industrial settings.
    Products specifications
    Chamfer Taper Pipe
    Type Hand Tap
    Size 1/4"
    Overall Length 2-7/16"
    Material High Speed Steel
    Shank Square
