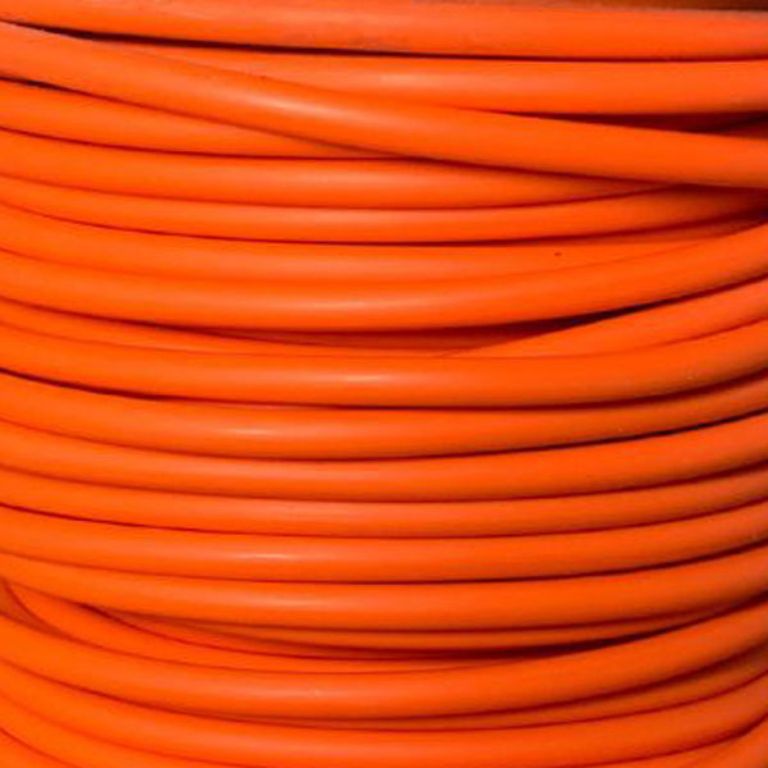

SXL CROSSLINK WIRE 1000' SPL 16 GAUGE, ORANGE

  • Cross-linked polyethylene wire.
  • Vulcanized to obtain thermosetting insulation which will not melt when exposed to heat.
  • For use at 60 volts or less.
  • Rated at 125°C (257°F), low temperature rating of -40°C (-40°F).
  • Meets SAE J1128 specifications.
  • RoHS compliant.
  • Resistant to grease, oil, gasoline, and acid.
  • General purpose automotive and marine wire for circuit wiring where higher heat resistance is required.
  • 16 gauge, orange
  • 1,000 foot spool, 6-1/2" wide x 6" tall x 2" i.d. spool
    Part #: SXL16M0
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $355.00
    $0.355
    i h h
    The SXL Crosslink Wire is a 16 gauge, 1000-foot length of high-performance wire designed for use in environments where heat resistance is crucial. Constructed of cross-linked polyethylene, this wire features vulcanized thermosetting insulation that withstands temperatures up to 125 C (257 F) without melting. Rated for applications at 60 volts or less, it is ideal for automotive and industrial uses where reliability and durability are essential. The bright orange color enhances visibility for easier handling and installation.
    Products specifications
    Gauge 16 Gauge
    Color Orange
    Quantity 1000'
