Nuts
LOCK NUT STOVER UNF ZINC 5/8"-18 GRADE C
8SLN5818
- Stover lock nuts, also called Grade C automation lock nuts.
- All metal, one-piece hex nut which derives it prevailing torque characteristics from controlled distortion of it top threads from their normal helical form to a more elliptical shape.
- Can withstand temperatures up to 450°s F.
- Can withstand severe vibration and shock loads.
- Frequently used in farm machinery, plus the automotive and related metalworking industries.
- Proof load 150,000 psi.
- Zinc plated.
- Size: 5/8"-18.
$32.76
$1.3104
$1.3104
LOCK NUT STOVER UNC ZINC 7/16"-14 GRADE C
8SLN7614
- Stover lock nuts, also called Grade C automation lock nuts.
- All metal, one-piece hex nut which derives it prevailing torque characteristics from controlled distortion of it top threads from their normal helical form to a more elliptical shape.
- Can withstand temperatures up to 450°s F.
- Can withstand severe vibration and shock loads.
- Frequently used in farm machinery, plus the automotive and related metalworking industries.
- Proof load 150,000 psi.
- Zinc plated.
- Size: 7/16"-14.
$36.80
$0.736
$0.736
LOCK NUT STOVER UNF ZINC 7/8"-14 GRADE C
8SLN7814
- Stover lock nuts, also called Grade C automation lock nuts.
- All metal, one-piece hex nut which derives it prevailing torque characteristics from controlled distortion of it top threads from their normal helical form to a more elliptical shape.
- Can withstand temperatures up to 450°s F.
- Can withstand severe vibration and shock loads.
- Frequently used in farm machinery, plus the automotive and related metalworking industries.
- Proof load 150,000 psi.
- Zinc plated.
- Size: 7/8"-14.
$18.51
$1.8512
$1.8512
LOCK NUT STOVER UNF ZINC 9/16"-18 GRADE C
8SLN9618
- Stover lock nuts, also called Grade C automation lock nuts.
- All metal, one-piece hex nut which derives it prevailing torque characteristics from controlled distortion of it top threads from their normal helical form to a more elliptical shape.
- Can withstand temperatures up to 450°s F.
- Can withstand severe vibration and shock loads.
- Frequently used in farm machinery, plus the automotive and related metalworking industries.
- Proof load 150,000 psi.
- Zinc plated.
- Size: 9/16"-18.
$18.00
$0.72
$0.72
WING NUT UNC ZINC 3/8"-16
3816WN
- A nut with wings which allow the part to be manually turned.
- Used when a part is frequently assembled and disassembled at a place where torque greater than that achieved with finger pressure is not needed.
- Made from cold forged steel.
- Zinc plated.
- Size: 3/8"-16.
$44.40
$0.444
$0.444
HEX NUT STAINLESS UNC 1/2"-13 316
XSSN1213-316
- A finished hex nut made from stainless steel.
- For use with grade stainless steel cap screws.
- Proof load: 100,000 psi.
- Corrosion resistant 316 stainless steel alloy.
- Size: 1/2"-13.
$62.65
$1.253
$1.253
LOCK NUT NYLON UNC ZINC 1/4"-20 GR 2 THIN PATTERN
XTLN1420
- Hex nut with a nylon-filled collar at its back end.
- When a screw reaches the collar, the threads and nylon engage for a tight, frictional fit.
- Restricts movement of the screw when it is subjected to vibration.
- Designed to be used with like-material machine screws and bolts.
- Reusable.
$23.25
$0.2325
$0.2325
HEX NUT METRIC ZINC M5-0.8 CL 10
XM5X0.8N10
- A hex nut with a metric thread pitch.
- Class 10.
- Intended for use with screws and bolts of property class 10.9 or lower.
- Widely used in farm equipment and automotive related industries.
- Made from low carbon steel.
- Size: M5-.80.
$16.20
$0.162
$0.162
HEX NUT METRIC ZINC M8-1.0 CL 8
XM8X1N
- A hex nut with a metric thread pitch.
- Class 8.
- Intended for use with screws and bolts of property class 8.8 or lower.
- Widely used in the automotive and electronics industry.
- Made from low carbon steel.
- Size: M8-1.0.
$26.55
$0.2655
$0.2655

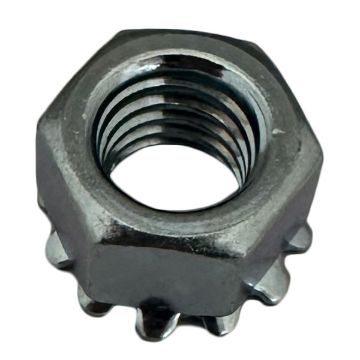

KEP NUT METRIC ZINC M8-1.25
XMKN8X1.25
- Keps nuts, also known as K lock nuts.
- A hex nut pre-assembled with a free spinning external tooth lock washer.
- The locking action is achieved when the nut is tightened against a bearing surface as the teeth of the lock washer dig into it.
- The most popular type of locknut because of its versatility, cost and ease of installation.
- Steel, zinc plated.
$68.48
$0.6848
$0.6848
LOCK NUT NYLON INSERT ZINC M10-1.50 CL 8
XMLN10
- Hex nut with a nylon-filled collar at its back end.
- When a screw reaches the collar, the threads and nylon engage for a tight, frictional fit.
- Restricts movement of the screw when it is subjected to vibration.
- Class 8.
- Designed to be used in structural application with class 8.8 or less cap screws or bolts.
- Reusable.
- Less expensive than Grade C Stover lock nuts.
- Made from low carbon steel.
- Size: M10-1.50.
- Zinc plated.
$13.06
$0.5224
$0.5224
