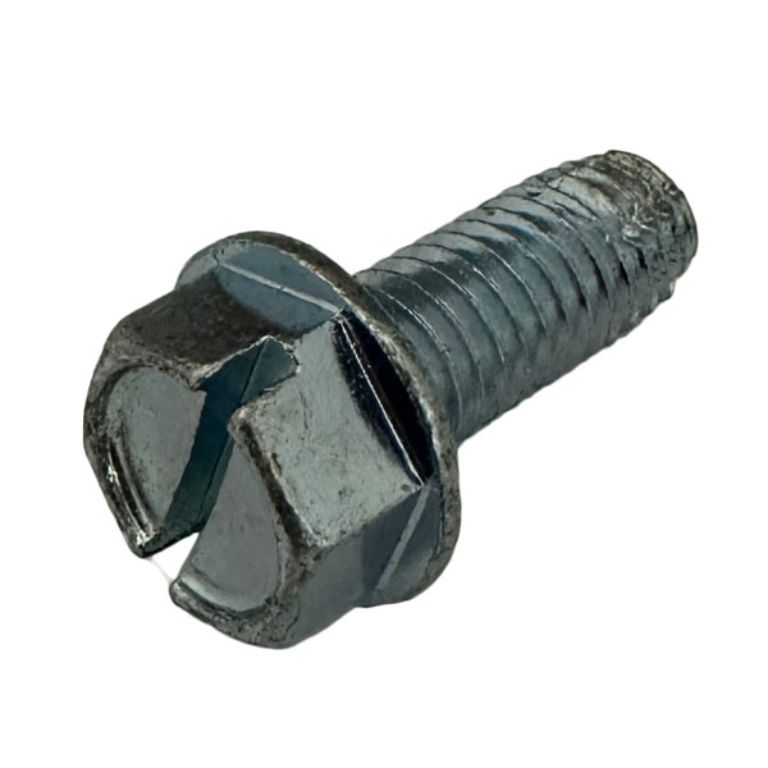

MACHINE SCREW HEX HEAD TYP-F #10-24 X 1" THREAD CUTTING

  • A thread cutting screw with machined screw thread pitch, blunt point, tapered entering threads and multiple cutting edges.
  • Steel thread-cutters are used in heavy gauge sheet metal, aluminum, zinc and lead die castings, cast iron, brass and plastic.
  • When using any thread-cutting screw, the material in which the threads are cut should have a lower hardness by at least 10 to 20 Rockwell hardness points.
  • Made from zinc plated AISI 1016-1024 steel or equivalent.
  • Type F thread cutting style.
  • Hex washer slotted head.
  • 10-24 diameter.
  • Length of 1".
    Part #: 1024X1HTYF
    Availability:
    In Stock
    Price: $24.60
    $0.246
    i h h
    The MACHINE SCREW HEX HEAD TYP-F #10-24 X 1" THREAD CUTTING is engineered for precision and reliability in various industrial applications. With a thread size of #10-24 and a length of 1 inch, this screw features a hex head for enhanced grip and a slotted drive style for easy installation. Designed for thread cutting, it efficiently creates its own threads in materials, making it suitable for metalworking and assembly tasks. Count on this screw to deliver strong fastening in demanding environments.
    Products specifications
    Drive Style Slotted
    Head Type Hex
    Thread Size #10-24
    Length 1"
