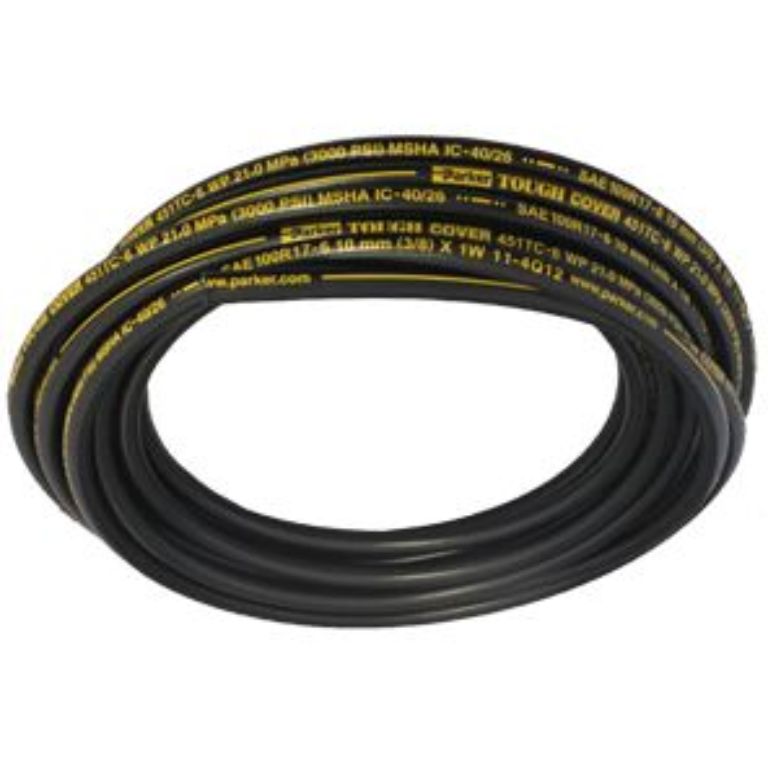

HYDRAULIC HOSE SAE 100R17 3/4" I.D. 50 FT.

  • 451TC hose is the choice when abrasion resistance and ease of use are required.
  • Flexible, one half SAE 100R1 minimum bend radius.
  • TC, tough cover, prolong hose life and minimizes down time.
  • 3,000 psi constant working pressure.
  • Exceeds SAE 100R17 specification.
  • Compatible with petroleum based hydraulic fluids and lubricating oils.
  • Temperature range: -40°F to 212°F.
  • Can be used with Parker 43 series crimp fittings.
  • 3/4" inside dimension.
  • 50 foot roll.
    Part #: X451TC-12
    Availability:
    In Stock
    Price: $1,485.00
    $29.70
    i h h
    The HYDRAULIC HOSE SAE 100R17 features a 3/4" inside diameter and is 50 feet in length, making it suitable for demanding hydraulic systems. Constructed for optimal abrasion resistance, this hose ensures longevity and reliable performance in tough environments. Its flexible design facilitates easy installation and maneuverability, making it an ideal choice for construction, agricultural, and industrial applications where hydraulic fluid transfer is essential.
    Products specifications
    Inside Diameter 3/4"
    Length 50'
    Min Bend Radius 4-3/4"
    Material Synthetic Rubber
    Compatible Fittings 43 Series
    Working PSI 3000
    Min Temp Range -40°F
    Max Temp Range 257°F
    Type Hose
