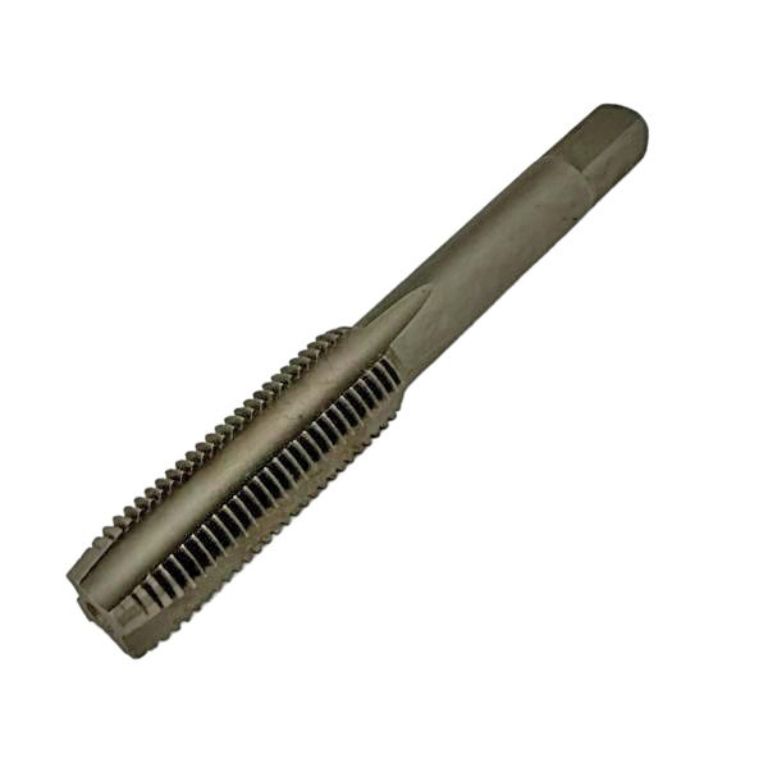

HAND TAP - HIGH SPEED/PLUG 1/4"-20

  • High speed plug hand tap.
  • Made from high quality high speed steel.
  • Can be used in tap wrenches or production tapping heads for general purpose tapping.
  • Standard "H" limits.
  • The most common chamfer for use by hand or machine in through or blind holes.
  • Chamfer length: 3-5 threads.
  • Size: 1/4-20.
  • Number of flutes: 4.
  • Length of thread: 1".
  • Overall length: 2-1/2".
    Part #: X1420PTAP
    Availability:
    In Stock
    Price: $14.8341
    i h h
    The HAND TAP - HIGH SPEED/PLUG 1/4"-20 is constructed from high-quality high-speed steel, ensuring durability and efficiency in tapping applications. With a standard "H" limit and a chamfer length of 3-5 threads, it is suitable for general-purpose tapping in both through and blind holes. This tap features four flutes for improved chip removal and a thread length of 1 inch, with an overall length of 2-1/2 inches. Compatible with tap wrenches and production tapping heads, it is a reliable choice for various industrial needs.
    Products specifications
    Size 1/4"-20
    Overall Length 2-1/2"
    Chamfer Plug
    Shank Square
    Type Hand Tap
    Material High Speed Steel
