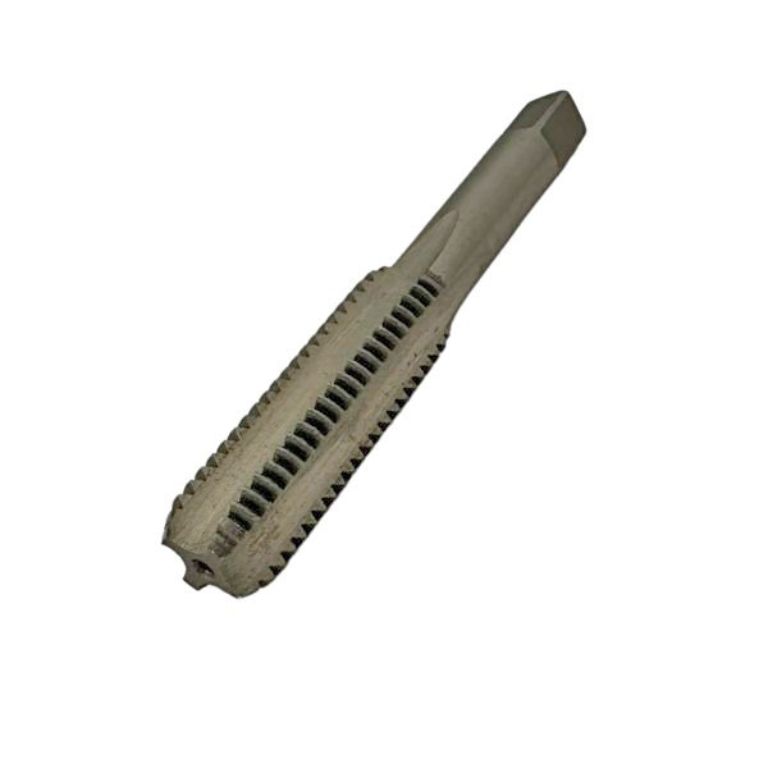

HAND TAP - HIGH SPEED/BOTTOM 5/8"-18

  • High speed bottom hand tap.
  • Made from high quality high speed steel.
  • Can be used in tap wrenches or production tapping heads for general purpose tapping.
  • Standard "H" limits.
  • Threads close to the bottom of blind holes.
  • Chamfer length: 1-2 threads.
  • Size: 5/8-18.
  • Number of flutes: 4.
  • Length of thread: 1-13/16".
  • Overall length: 3-13/16".
    Part #: X5818BTAP
    Availability:
    In Stock
    Price: $63.349
    i h h
    The HAND TAP - HIGH SPEED/BOTTOM 5/8"-18 is designed for efficient threading in confined areas, ensuring precise internal threads. Made from high-speed steel, this tap provides excellent durability and heat resistance, making it suitable for use in a variety of materials including steel and aluminum. With a bottoming design, it is specifically engineered to create threads close to the bottom of a blind hole, enhancing versatility in industrial applications. Ideal for machinists and manufacturers seeking reliability and performance.
    Products specifications
    Material High Speed Steel
    Shank Square
    Overall Length 3-13/16"
    Type Hand Tap
    Chamfer Bottom
    Size 5/8"-18
