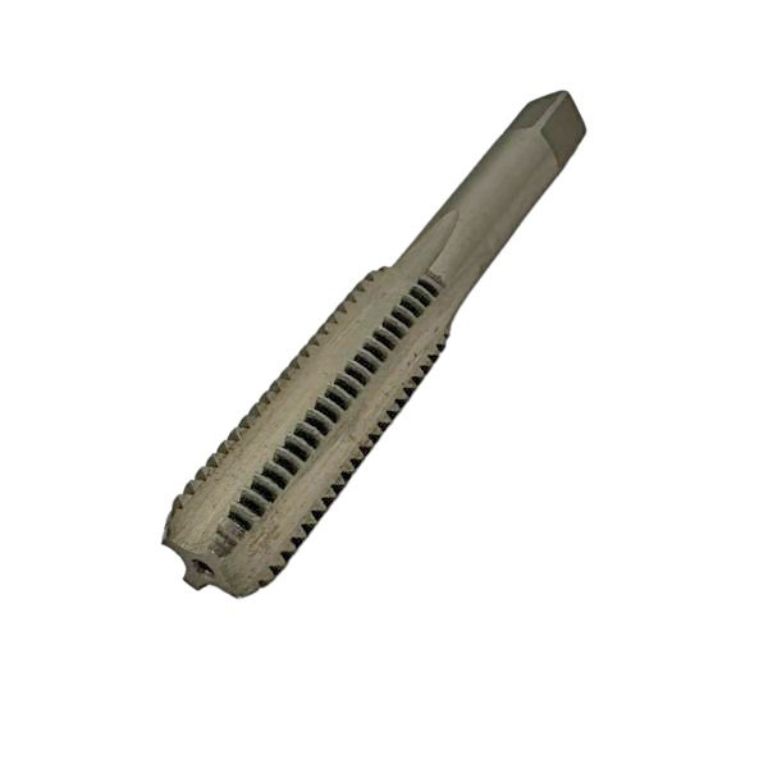

HAND TAP - HIGH SPEED/BOTTOM 1/4"-20

  • High speed bottom hand tap.
  • Made from high quality high speed steel.
  • Can be used in tap wrenches or production tapping heads for general purpose tapping.
  • Standard "H" limits.
  • Threads close to the bottom of blind holes.
  • Chamfer length: 1-2 threads.
  • Size: 1/4-20.
  • Number of flutes: 4.
  • Length of thread: 1".
  • Overall length: 2-1/2".
    Part #: X1420BTAP
    Availability:
    In Stock
    Price: $14.8341
    i h h
    The HAND TAP - HIGH SPEED/BOTTOM 1/4"-20 is crafted from high quality high speed steel, ensuring longevity and performance in various tapping applications. Designed for use with tap wrenches or production tapping heads, it is ideal for general purpose tapping. This tap features four flutes and is capable of threading close to the bottom of blind holes with a chamfer length of 1-2 threads. With a thread length of 1 inch and an overall length of 2-1/2 inches, it meets standard "H" limits for precision.
    Products specifications
    Material High Speed Steel
    Overall Length 2-1/2"
    Shank Square
    Chamfer Bottom
    Size 1/4"-20
    Type Hand Tap
