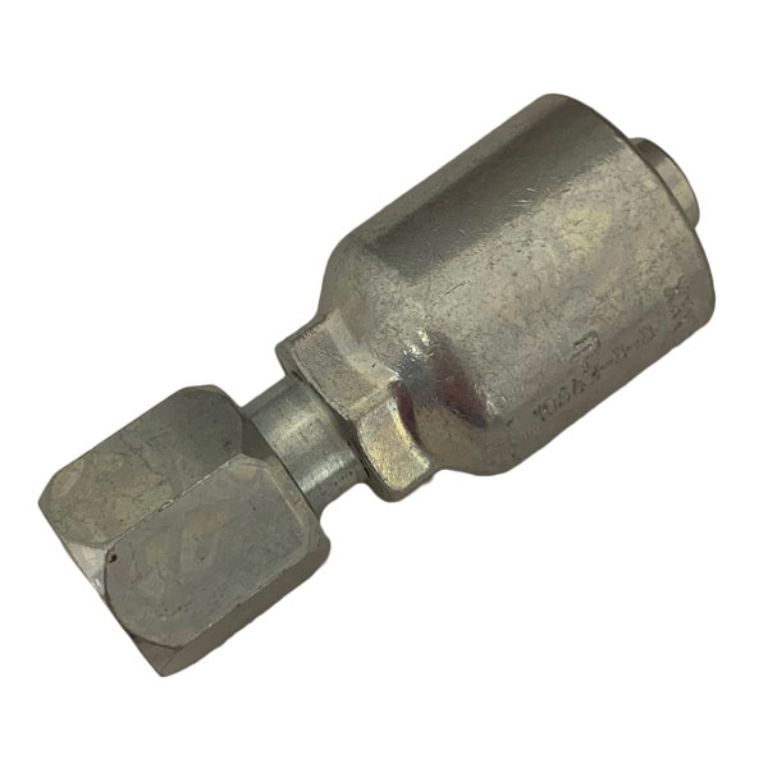

FEMALE JIC 37° SWIVEL 7/8"-14 THREAD, 5/8" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 5/8" hose.
  • 7/8"-14 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-10-10
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $39.445
    i h h
    The X10643-10-10 is a female JIC 37 swivel fitting designed for efficient hydraulic applications. It features a 7/8"-14 thread and accommodates a 5/8" hose diameter, ensuring a secure and reliable connection. Constructed from Chromium-6 free plated steel, this fitting is compatible with Parker hydraulic braided hoses and allows for quick assembly using Parkrimp crimpers without the need to remove the hose's outer cover. Ideal for permanent, crimp-style installations in demanding environments.
    Products specifications
    Degree 37°
    Inside Diameter 5/8"
    Gender Female
    Shape Elbow
    Compatible Fittings 43 Series
    Type JIC 37°
    Style Swivel
    Thread Size 7/8"-14
    Port Connection 5/8"
    Material Steel
