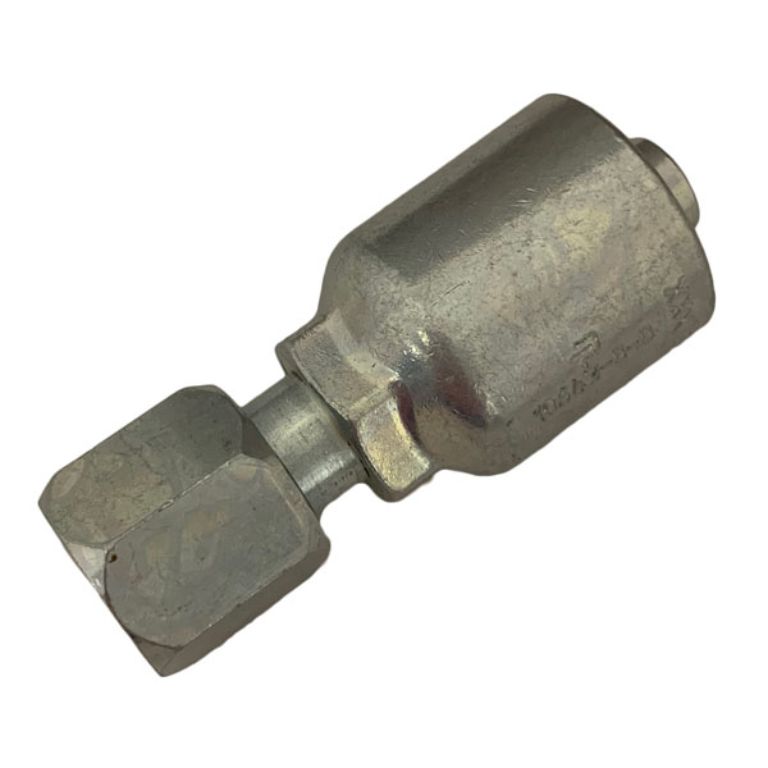

FEMALE JIC 37° SWIVEL 7/8"-14 THREAD, 3/8" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 3/8" hose.
  • 7/8"-14 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-10-6
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $30.6375
    i h h
    The Female JIC 37 swivel fitting features a 7/8"-14 thread and is designed for a 3/8" hose, making it ideal for hydraulic systems requiring reliable connections. This fitting is part of the Parker 43 series, which allows for quick assembly using Parkrimp crimpers without the need to remove the hose's outer cover. Constructed from Chromium-6 free plated steel, this fitting ensures durability and compliance with environmental standards, making it suitable for a variety of industrial applications.
    Products specifications
    Gender Female
    Inside Diameter 3/8"
    Degree 37°
    Shape Elbow
    Thread Size 7/8"-14
    Type JIC 37°
    Compatible Fittings 43 Series
    Material Steel
    Port Connection 5/8"
    Style Swivel
