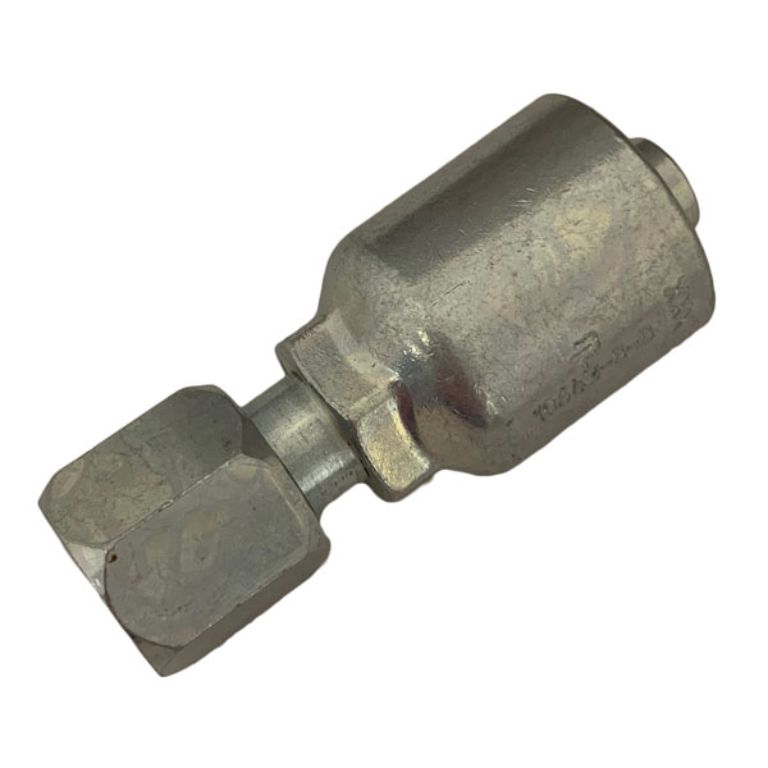

FEMALE JIC 37° SWIVEL 7/8"-14 THREAD, 3/4" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 3/4" hose.
  • 7/8"-14 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-10-12
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $42.21
    i h h
    The Female JIC 37 Swivel fitting features a 7/8"-14 thread and is compatible with 3/4" hose, making it ideal for hydraulic applications. This fitting is part of the Parker 43 series, which allows for permanent crimp connections without the need to remove the outer cover of the hose. Constructed from Chromium-6 free plated steel, it ensures corrosion resistance and long-lasting performance. Designed for use with Parker s hydraulic braided hoses, it provides reliable and efficient assembly in demanding environments.
    Products specifications
    Shape Elbow
    Degree 37°
    Gender Female
    Inside Diameter 3/4"
    Material Steel
    Compatible Fittings 43 Series
    Type JIC 37°
    Port Connection 5/8"
    Style Swivel
    Thread Size 7/8"-14
