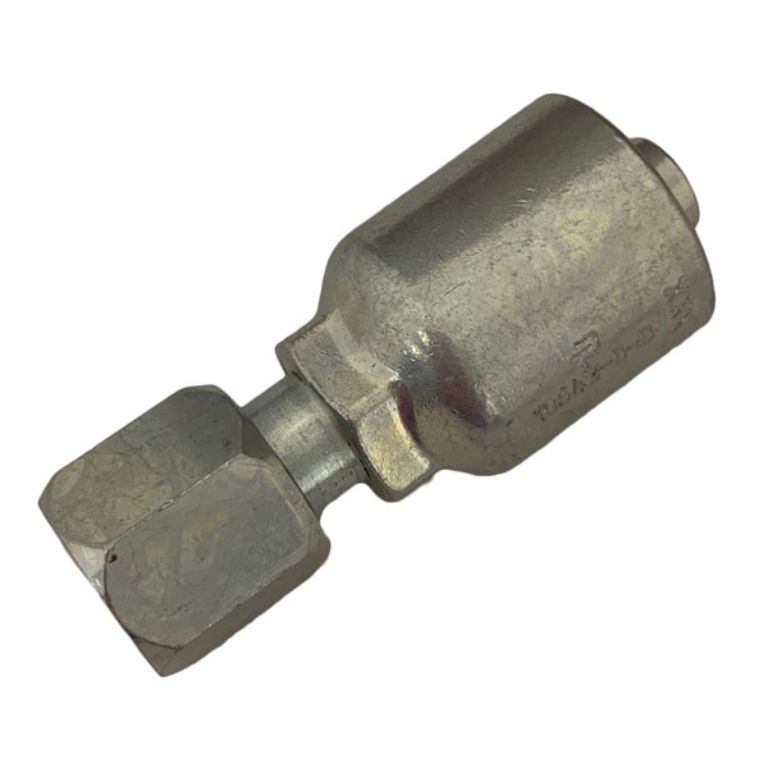

FEMALE JIC 37° SWIVEL 7/16"-20 THREAD, 3/8" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 3/8" hose.
  • 7/16"-20 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-4-6
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $21.7125
    i h h
    The Female JIC 37 swivel fitting features a 7/16"-20 thread and is specifically designed for 3/8" hoses. This fitting allows for quick assembly with Parker's Parkrimp crimpers without the need to remove the outer hose cover. Constructed from Chromium-6 free plated steel, it ensures durability and reliability in hydraulic applications. Ideal for use with Parker hydraulic braided hoses, this fitting provides optimal performance in demanding environments.
    Products specifications
    Gender Female, Female
    Shape Elbow, Straight
    Degree 37°, 37
    Inside Diameter 3/8", 3/8"
    Thread Size 7/16"-20, 7/16"-20
    Material Steel, Steel
    Type JIC 37°, JIC 37
    Style Swivel, Swivel
    Port Connection 1/4", 1/4"
    Compatible Fittings 43 Series, 43 Series
