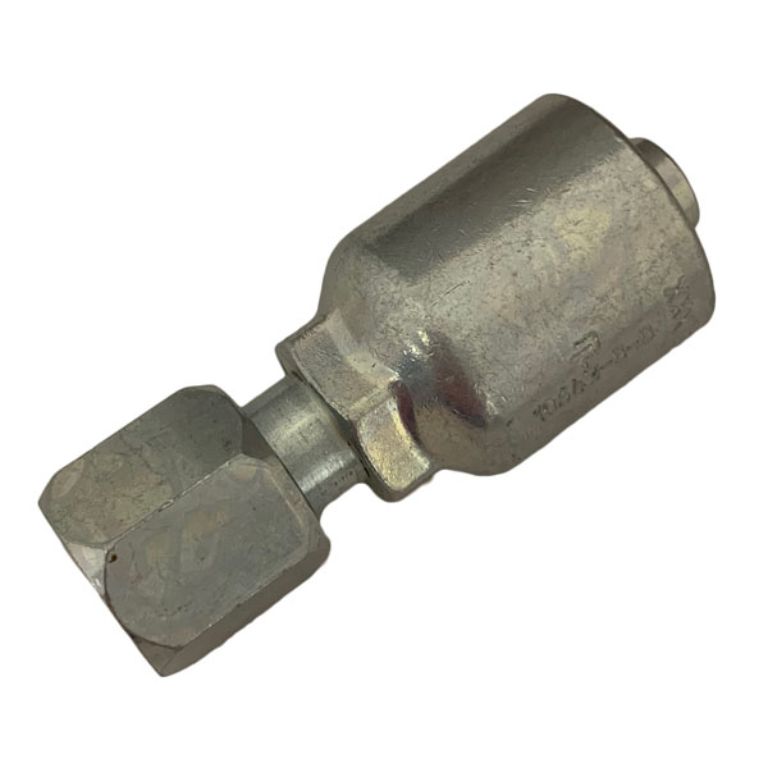

FEMALE JIC 37° SWIVEL 1/2"-20 THREAD, 1/4" HOSE

  • Parker 43 series fittings are a permanent (crimp) style fitting.
  • Permits quick assembly with the Parker family of Parkrimp crimpers.
  • Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose.
  • 43 series fittings are made from Chromium-6 free plated steel.
  • These fittings are used with Parker hydraulic braided, light spiral, specialty, suction and return hoses.
  • Female JIC 37° swivel
  • For use with 1/4" hose.
  • 1/2"-20 thread fitting connection.
  • Do not assemble a Parker fitting on a Parker hose that is not specifically listed by Parker for that fitting, or assemble a Parker fitting on another manufacturer's hose.
  • To ensure proper function and safety, you should only use Parker fittings with Parker hose on an approved Parker crimper for the recommended sizes and pressures.
    Part #: X10643-5-4
    Availability:
    Special Order - 7 to 10 day lead time
    Price: $14.8002
    i h h
    The X10643-5-4 is a female JIC 37 swivel fitting featuring a 1/2"-20 thread and a 1/4" inside diameter. Constructed from Chromium-6 free plated steel, this fitting is part of the Parker 43 series, designed for permanent crimp applications. It allows for quick assembly with Parker's Parkrimp crimpers and eliminates the need for removing the hose's outer cover during installation. Ideal for use with Parker hydraulic braided hoses, it ensures a secure and efficient connection in various industrial applications.
    Products specifications
    Shape Straight
    Degree 37°
    Gender Female
    Inside Diameter 1/4"
    Compatible Fittings 43 Series
    Style Swivel
    Material Steel
    Type JIC 37°
    Thread Size 1/2"-20
    Port Connection 5/16"
